Preface

前言

Bubble Cavitation Dynamics: From Fluid Mechanics to Laser-Driven Transfer is an original teaching text for Pengfei, an engineering-mechanics student who already understands continuum mechanics, fluid dynamics, differential equations, and elementary vibration theory. You do not need a previous course in bubble dynamics. You do need to be willing to distinguish a governing equation from the assumptions that make it solvable.

《气泡空化动力学：从流体力学到激光驱动转印》是一部为鹏飞编写的原创学习教材。读者已掌握连续介质力学、流体力学、微分方程和基础振动理论，但不需要事先学习过气泡动力学。学习本书的关键，是始终区分支配方程本身与使其能够求解的模型假设。

The organizing question is: How does a localized pressure or energy disturbance become bubble motion, liquid motion, and finally useful—or destructive—mechanical loading? A bubble is a moving interface coupled to liquid inertia, interfacial stress, gas thermodynamics, phase change, and sometimes a deformable solid. Learning only a radius equation would leave most of that question unanswered.

本书围绕一个问题展开：局部压力或能量扰动，如何转变为气泡运动、液体运动，并最终形成有用或有害的机械载荷？气泡是一个运动界面，它与液体惯性、界面应力、气体热力学、相变，有时还与可变形固体相耦合。仅仅学会一个半径方程，不足以完整回答这个问题。

What your materials contribute

资料如何进入本书

The supplied archive contains 35 papers, spanning 1949–2026 and 506 PDF pages, including cover sheets and accepted-manuscript pages. Their contributions fall into four overlapping groups: spherical-bubble mechanics; nucleation and laser energy conversion; jets and droplet vaporization; and compliant boundaries, printing, and detachment. The core mechanisms, selected equations, and relevant results were inspected directly. Other papers were inspected at abstract or overview level and are used as directed reading, not as evidence for unexamined quantitative claims. Appendix B records the role and reading depth of every paper.

你提供的压缩包包含35篇论文，年代跨越1949—2026年，共506个PDF页面，包括封面和接收稿页面。其内容可分为四个相互交叉的主题：球形气泡力学；成核与激光能量转换；射流与液滴汽化；以及柔性边界、打印和脱离。书中核心机制、部分关键方程和相关结果均经过直接检查；其余论文主要检查摘要或概述，用作延伸阅读，而不被用来支持未经核查的定量结论。附录B说明每篇论文的用途和阅读深度。

Citations such as [S390] identify a paper by its folder number in your export, not by an invented bibliography order. [B1] is the independently verified companion textbook. Equations derived here and numerical examples created here are original teaching material; they are not digitized experimental data or claimed reproductions of a paper. The archive's original PDFs are not redistributed in this package.

例如，[S390]表示你导出资料中编号为390的文件夹所对应的论文，而不是任意重新编排的文献序号。[B1]表示独立核实的配套教材。本书的推导和数值示例属于原创教学内容，并非从实验图中提取的数据，也不宣称复现了某篇论文。交付包不重新分发原始论文PDF。

How to study

如何学习

On a first pass, read Chapters 1–7 in order, derive the Rayleigh–Plesset equation without looking at the answer, and run the numerical laboratory in Chapter 13. On a second pass, study Chapters 8–12 and connect each additional physical effect to an observable that the spherical model cannot predict. Chapter 15 then develops a staged research model for a liquid–PVC–film system. Chapter 16 supplies worked problems rather than merely a list of questions.

第一遍学习时，请按顺序阅读第1—7章，尝试不看答案独立推导Rayleigh–Plesset方程，并运行第13章的数值实验。第二遍学习时，阅读第8—12章，把每一个新增物理效应与球形模型无法预测的可观测量联系起来。第15章进一步建立液体—PVC—薄膜体系的分阶段研究模型。第16章提供详细习题解答，而不只是题目清单。

Keep three notebooks: a derivation notebook, a parameter-and-units ledger, and a model-discrepancy log. In the last one, write down what each model deliberately leaves out. A useful model is not the one containing the most physics; it is the simplest model whose missing physics does not invalidate the quantity you intend to predict.

建议准备三份学习记录：推导笔记、参数与单位台账、模型偏差记录。在最后一份记录中，明确写出每个模型有意忽略的物理过程。有用的模型不一定包含最多的物理内容，而应当是在不使目标预测量失效的前提下，尽可能简单的模型。

Scope and limitations

范围与边界

This is a foundation-to-research textbook centered on single bubbles and bubble-driven transfer. Bubble clouds, sonochemistry, sonoluminescence, turbulent cavitating machinery, and fully developed multiphase acoustics are introduced only where needed. The numerical code solves spherical radial mechanics with specified closures. It does not simulate nucleation, resolve shocks, predict biological effects, or calculate film fracture. Laser and pressure experiments require suitable local safety controls; the calculations here do not establish safe operating conditions.

本书以单气泡和气泡驱动转印为中心，连接基础理论与科研建模。气泡云、声化学、声致发光、湍流空化机械和完整多相声学，仅在必要时作简要说明。配套代码求解采用指定闭合关系的球形径向动力学，不模拟成核、不解析激波、不预测生物效应，也不计算薄膜断裂。激光与压力实验必须遵守所在实验室的安全管理要求；本书计算不能用来确定安全操作条件。

Preface What your materials contribute How to study Scope and limitations 1. A bubble as a mechanical system 1.1 The object you are modeling 1.2 Cavitation, boiling, and vaporization are not synonyms 1.3 Four balances and one moving boundary 1.4 The first scale analysis

1. A bubble as a mechanical system

气泡作为力学系统

1.1 The object you are modeling

你究竟在研究什么

Imagine a spherical cavity of radius $R(t)$ in an otherwise unbounded liquid. Its interior may contain noncondensable gas, vapor of the surrounding liquid, or both. The surrounding liquid carries most of the kinetic energy in many radial-motion problems. Consequently, the bubble is not best imagined as a little solid particle with a fixed mass. It is a deformable interface that continuously recruits liquid into motion. [S419, S413]

设想一个半径为 $R(t)$ 的球形空腔，位于其他方面无限延伸的液体中。内部可以包含不凝性气体、周围液体的蒸气，或者二者的混合物。在许多径向运动问题中，大部分动能储存在周围液体中。因此，不应将气泡简单理解为具有固定质量的小固体颗粒；它是一个不断带动液体运动的可变形界面。[S419, S413]

We use $p_B$ for total pressure immediately inside the bubble and $p_L$ for liquid pressure immediately outside its interface. The remote liquid pressure is $p_\infty(t)$ . Unless explicitly called a pressure difference, all pressures are absolute. A negative acoustic pressure usually means a negative deviation from a positive ambient pressure; it does not automatically mean negative absolute pressure.

用 $p_B$ 表示气泡界面内侧的总压力， $p_L$ 表示界面外侧紧邻液体的压力， $p_\infty(t)$ 表示远场液体压力。除非明确说明是压差，本书压力均为绝对压力。负声压通常是相对于正环境压力的负偏差，并不自动意味着绝对压力为负。

For a static clean spherical interface with constant surface tension $\sigma$ , the Young–Laplace balance is

对于表面张力 $\sigma$ 恒定、洁净且静止的球形界面，Young–Laplace平衡关系为

p_B-p_\infty=\frac{2\sigma}{R}. \tag{1.1}

1.1 The object you are modeling / 你究竟在研究什么; p_B: total interior bubble pressure; p∞: ambient liquid pressure; σ: interface tension / solid stress; R: instantaneous wall radius

This immediately explains why a microscopic gas bubble can have a substantially higher internal pressure than the surrounding water. The factor two comes from the two equal principal curvatures of a sphere. It is not the factor four for a soap bubble with two liquid–gas surfaces.

这个关系直接解释了为什么微小气泡的内部压力可以明显高于周围水的压力。系数2来自球面的两个相等主曲率，而不是肥皂泡中由两个液—气表面产生的系数4。

1.2 Cavitation, boiling, and vaporization are not synonyms

空化、沸腾和汽化并非同义词

Vaporization is a liquid-to-vapor phase change. Boiling usually emphasizes vapor production in a liquid made sufficiently hot relative to local pressure. Cavitation usually emphasizes cavity formation and evolution associated with a pressure reduction. Laser-induced optical breakdown can create a hot, pressurized cavity before its subsequent expansion and collapse are described by cavitation dynamics. These categories overlap physically, but the route by which the cavity is created determines the correct source model. [S390, S408, S409, S415]

汽化是液体向蒸气的相变。沸腾通常强调液体温度相对于局部压力足够高而产生蒸气。空化通常强调与压力降低有关的空腔形成和演化。激光光学击穿可先形成高温、高压空腔，随后其膨胀和塌缩才由空化动力学描述。这些概念在物理上存在交叉，但空腔的形成途径决定了应采用何种源项模型。[S390, S408, S409, S415]

A phase-change nanodroplet may vaporize into a bubble without immediately undergoing violent inertial collapse. A thermally formed bulge may detach a solid platelet without producing an ejected liquid microjet. Conversely, a stress wave may delaminate a film without a nearby bubble being the loading agent. Your sources contain examples of all three distinctions. [S387, S72, S340]

相变纳米液滴可以汽化为气泡，却不立即发生剧烈惯性塌缩。热致鼓包可以使固体薄片脱离，而不产生向外喷出的液体微射流。反过来，应力波也可能使薄膜分层，而不需要附近气泡作为加载主体。你提供的资料中，这三种区别都有对应实例。[S387, S72, S340]

1.3 Four balances and one moving boundary

四类平衡与一个运动界面

A complete calculation may require liquid momentum and mass conservation, interfacial traction balance, heat and species transport, and solid mechanics. These are coupled through the interface position. The moving boundary is part of the unknown, so specifying a pressure history alone is not generally enough to specify the whole problem.

完整计算可能需要液体动量与质量守恒、界面牵引平衡、热量与组分输运，以及固体力学。这些过程通过界面位置相互耦合。运动边界本身也是未知量，因此，单独指定压力历程通常不足以定义整个问题。

Before deriving equations, state the intended output. For $R(t)$ far from boundaries, a radial ordinary differential equation may suffice. For jet direction, interface shape must be resolved. For peak collapse pressure, compressibility and measurement bandwidth become central. For film release, interfacial fracture and structural inertia cannot be inferred from radius alone. [S339, S362, S409, S418]

推导方程前，先明确所需输出。若研究远离边界的 $R(t)$ ，径向常微分方程可能已经足够。若研究射流方向，必须解析界面形状。若研究塌缩峰值压力，可压缩性和测量带宽就成为关键。若研究薄膜释放，则不能仅凭气泡半径推断界面断裂与结构惯性。[S339, S362, S409, S418]

1.4 The first scale analysis

第一次尺度分析

Choose a characteristic radius $R_*$ and a positive inertial pressure difference $\Delta p$ . Then define an inertial velocity and time. Compare these with acoustic propagation, capillary restoration, viscous diffusion, and thermal diffusion:

选取特征半径 $R_*$ 和正的惯性驱动压差 $\Delta p$ ，由此定义惯性速度和时间，再与声传播、毛细回复、黏性扩散和热扩散进行比较：

U_* = \sqrt{\frac{\Delta p}{\rho}},\qquad t_I=\frac{R_*}{U_*},\qquad t_a=\frac{R_*}{c},\qquad t_\sigma=\sqrt{\frac{\rho R_*^3}{\sigma}}, \tag{1.2}

1.4 The first scale analysis / 第一次尺度分析; U: velocity / velocity scale; Δ: change / pressure difference; p: pressure at the indicated location; ρ: liquid / layer / droplet density; t_I: physical time; R: instantaneous wall radius; t_a: acoustic crossing time; c: sound speed / heat capacity; t_σ: physical time; σ: interface tension / solid stress

t_\nu=\frac{R_*^2}{\nu},\qquad t_\alpha=\frac{R_*^2}{\alpha},\qquad \nu=\frac{\mu}{\rho}. \tag{1.3}

1.4 The first scale analysis / 第一次尺度分析; t_ν: physical time; R: instantaneous wall radius; ν: Poisson ratio; t_α: physical time; α: thermal diffusivity; μ: dynamic viscosity / absorption coefficient; ρ: liquid / layer / droplet density

These are comparison scales, not five independent predictions of the bubble lifetime. In particular, $t_\alpha$ based on the entire bubble radius may not represent heat transfer across a much thinner thermal boundary layer. Likewise, a long total lifetime does not prevent the last part of collapse from becoming acoustically fast.

这些是用于比较的尺度，而不是气泡寿命的五个独立预测。尤其是，以整个气泡半径计算的 $t_\alpha$ ，不一定代表更薄热边界层中的传热时间。同样，即使总寿命很长，塌缩末期仍可能进入与声传播相当的快速过程。

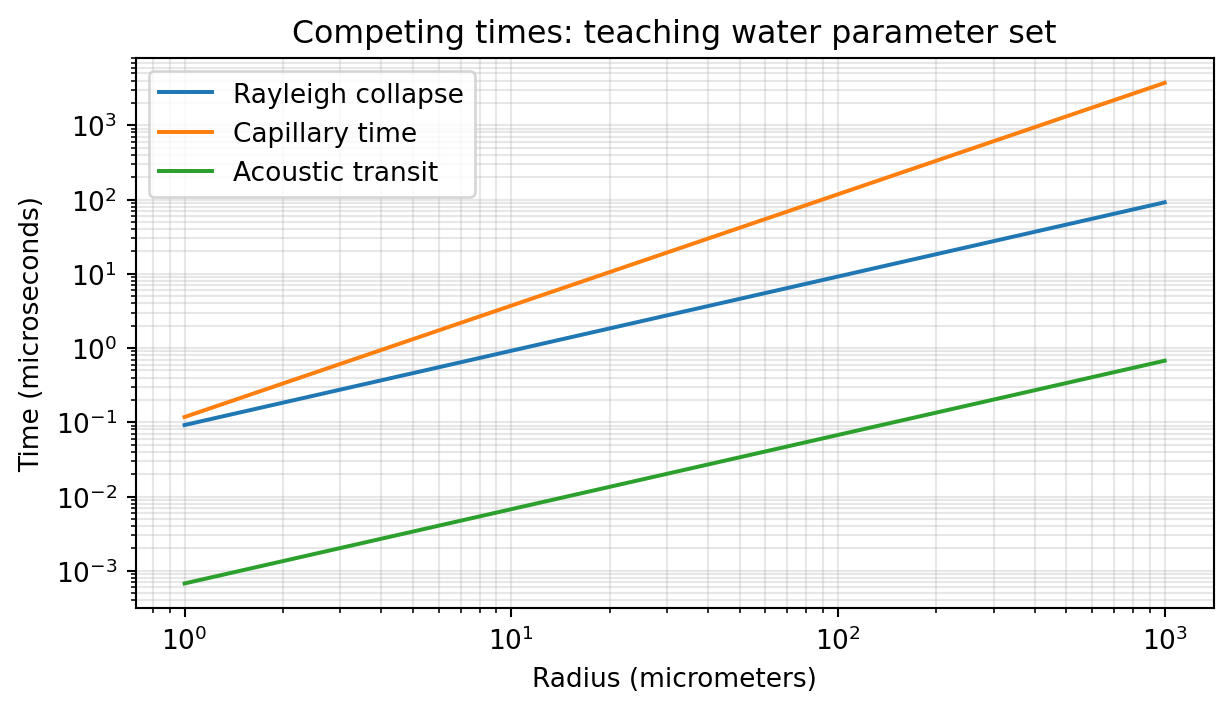

Characteristic times for the teaching water parameter set. Each curve represents a scale, not a simulated bubble lifetime. / 教学水参数下的特征时间。各曲线表示尺度，而非模拟得到的气泡寿命。 — Characteristic times for the teaching water parameter set. Each curve represents a scale, not a simulated bubble lifetime.
教学水参数下的特征时间。各曲线表示尺度，而非模拟得到的气泡寿命。

Checkpoint. Explain why a model can predict maximum radius accurately yet predict collapse pressure poorly. The answer should mention the different timescales and physical effects sampled by these two observables.

自检。为什么模型可能准确预测最大半径，却严重误判塌缩压力？回答应涉及这两个可观测量所对应的不同时间尺度和物理效应。

Integrated calculation and model check

综合计算与模型检查

Use the declared parameter set in each part. The values are teaching scenarios unless specifically identified as inherited project inputs. Each reference panel follows its question.

使用每小题明确给出的参数。除明确标为沿用项目输入外，数值均为教学情景。各参考解答紧随题目。

A water bubble has R = 10 µm. Using the book values ρ = 998 kg/m³, σ = 0.072 N/m and Δp = 98,986 Pa, calculate capillary pressure and inertial speed. Is gas pressure dispensable merely because the bubble is small?
水中气泡半径为 10 µm。使用教材数值 ρ = 998 kg/m³、σ = 0.072 N/m、Δp = 98,986 Pa，计算毛细压力和惯性速度。气泡小就可以忽略气体压力吗？
Reference answer / 参考答案
$p_\sigma=2\sigma/R,\qquad U_* = \sqrt{\Delta p/\rho}$
The diagram locates the physical system; its key lists the symbols in the formula. Read the definition in the surrounding derivation when a letter has different roles.
图示标出物理体系，图例列出公式中的符号。若某字母有多种作用，应以邻近推导中的定义为准。
The capillary pressure is 2(0.072)/(10×10⁻⁶) = 14,400 Pa. The speed scale is √(98,986/998) = 9.959 m/s. This is a scale, not a solved wall velocity. Gas can supply the restoring pressure and rebound cushion even for a small bubble.
毛细压力为 2(0.072)/(10×10⁻⁶) = 14,400 Pa。速度尺度为 √(98,986/998) = 9.959 m/s。这是尺度，并非求得的壁面速度。即使气泡很小，气体也可能提供回复压力与回弹缓冲。
Compute tI = R/U* and ta = R/c for c = 1482 m/s. Explain what the liquid contributes to a radial coordinate.
取 c = 1482 m/s，计算 tI = R/U* 和 ta = R/c，并解释液体对径向坐标的作用。
Reference answer / 参考答案
$t_I=R\sqrt{\rho/\Delta p},\qquad t_a=R/c,\qquad M_R=4\pi\rho R^3$
The diagram locates the physical system; its key lists the symbols in the formula. Read the definition in the surrounding derivation when a letter has different roles.
图示标出物理体系，图例列出公式中的符号。若某字母有多种作用，应以邻近推导中的定义为准。
tI = 1.004 µs and ta = 6.748 ns, so ta/tI = 0.00672. The surrounding liquid carries a radius-dependent generalized mass, 1.254×10⁻¹¹ kg here. R is an interface displacement; acceleration is not motion of a fixed gas mass alone.
tI = 1.004 µs，ta = 6.748 ns，因此 ta/tI = 0.00672。周围液体具有随半径改变的广义质量，此处为 1.254×10⁻¹¹ kg。R 是界面位移；加速度并非仅对应固定气体质量的运动。
The pressure driving becomes inward while the wall is moving outward. State the immediate velocity and acceleration signs and what must happen before collapse.
壁面仍向外运动时，压力驱动转为向内。说明瞬时速度与加速度符号，以及塌缩前必须发生什么。
Reference answer / 参考答案
$\ddot R=\big[(p_B-p_\infty-2\sigma/R-4\mu\dot R/R)/\rho-\tfrac32\dot R^2\big]/R$
The diagram locates the physical system; its key lists the symbols in the formula. Read the definition in the surrounding derivation when a letter has different roles.
图示标出物理体系，图例列出公式中的符号。若某字母有多种作用，应以邻近推导中的定义为准。
For positive R and inward net pressure, Ṙ > 0, R̈ < 0: growth decelerates. The wall continues outward until Ṙ reaches zero; negative Ṙ then marks collapse. The instantaneous force does not erase liquid momentum.
R 为正、净压力向内时，Ṙ > 0、R̈ < 0，即膨胀减速。壁面继续向外，直到 Ṙ 降到零；之后 Ṙ 为负才进入塌缩。瞬时力不会消除液体动量。

Brief conceptual synthesis

简短概念综合

After using the reference panels, give a short explanation of the physical mechanism, the strongest assumption, and one observation that could falsify this chapter’s model. Preparation of later chapters does not require waiting for that reply.

核对参考解答后，简述物理机制、最强假设，以及一个可证伪本章模型的观测。后续章节编写无需等待该回答。
