Where: COMSOL Desktop.

Do: Identify Model Builder at the left, Settings for the selected node in the middle, and Graphics for plots at the right. Progress, Messages, Log and Results tables normally appear below. A node path such as Global Definitions → Parameters 1 means expand the first node and select its child. A right-click creates a child of the node under the pointer. After editing a table cell, press Tab or click outside the cell to commit the entry.

Check: Select a node. Confirm that Settings changes.

Interface schematic. Layout varies with your window. Use the node and field names.

Where: File → New → Model Wizard.

Do: Open COMSOL Multiphysics 6.4. Choose Model Wizard on the New page. Save existing work before switching models. Work inside a new practice/ folder beside this guide. Create that folder in the Save As dialog when prompted later.

Check: The wizard displays Select Space Dimension.

Where: Model Wizard → Select Space Dimension.

Enter: Select 0D.

Check: The wizard advances to Select Physics. The unknowns are time-dependent scalars. Chamber and outlet radii enter as parameters. This model needs no spatial geometry.

Where: Select Physics → Mathematics → ODE and DAE Interfaces → Global ODEs and DAEs.

Do: Select Global ODEs and DAEs and click Add. Search the full interface name if needed. Add one interface.

Check: Added physics interfaces contains Global ODEs and DAEs. It supplies the Global Equations table.

If stuck: Clear the search filter and confirm 0D was selected. The native files use the base COMSOL license. Gel mechanics enters as scalar expressions.

Where: Model Wizard → Study → General Studies.

Enter: Choose Time Dependent, then click Done.

Check: Model Builder contains a Component, Global ODEs and DAEs, and Study 1 → Step 1: Time Dependent.

Where: Click Component 1.

Enter: Set Name to c and Label to c: Model A practice. Keep the SI unit system. Name sets the namespace, as in c.U. Label sets the visible caption.

Check: The component's Name is c. Label does not change the namespace.

If stuck: If Name remains comp1, correct it now. All result and stop expressions below use the c. prefix. Component Name documentation.

Where: File → Save As.

Enter: Save as practice/A_01_setup.mph. Use Ctrl+S afterward. Save new checkpoints at the milestones below.

Check: The title bar shows your practice filename. The accepted native files in models/ remain available for comparison.

Where: Global Definitions → Parameters 1.

Do: Enter all rows below, or click Load from File under the table and choose A_parameters_import.txt. Import its two tab-separated columns once. The file has no header. Descriptions appear below. If you type manually, use the exact case of each name and the square brackets around units.

Check: There are 32 parameter names and no duplicate names. Finish all rows before checking unresolved dependencies in Value. p0 is absolute pressure and E0 is an expression derived from it.

Where: Stay in Parameters 1, looking at the Value column.

Check against:

Why: L defines liquid inertia. Lbudget defines how much connected liquid can leave. These have different meanings. The 2 nJ value is mechanical availability after activation. It is not incident laser energy. tauLaser=10[ns] records the short-pulse assumption. It is not a time-dependent forcing function and changing it alone will not change this solution.

If stuck: A negative available work or invalid equilibrium volume usually indicates a pressure/unit error. Use the supplied absolute p0. Do not replace it with the 279.632 kPa gauge value.

Where: Right-click Component c → Definitions → Variables.

Do: Set the Label to Source, outlet and accounting. Enter the first seven rows below. For the whole 33-row table, you may instead use Load from File and select A_variables_import.txt. Then inspect the three groups in Steps 10–12. Use local names inside this component table, without adding c. to the Name column.

Check: The chamber radius is fixed through R=Rc0. Wall speed is exactly 0[m/s]. The gas volume includes discharged liquid volume. qq and vv will become defined when you add the equation rows in Step 14.

Where: The same Variables node.

Do: Add the following seven rows if you are entering manually. Model A sets the gel-related terms to dimensioned zero. The loss expression permits later sensitivity controls. The baseline loss inputs are zero.

Check: The column energy Kjet uses effective column inertia. The emitted energy is Eout, entered next. Meniscus work is the work of the declared constant entry-pressure control. Its evolving free surface is not solved.

Where: The same Variables node.

Do: Add the remaining 19 rows. Keep the outgoing kinetic-head term -rho*U^2/2 in acc, and keep Eout in energyResidual. These terms account for energy leaving the outlet. Retain both.

Check: The completed node has 33 names. Eout, Iout and Mout mean actual emitted energy, axial impulse and liquid mass. Ijet means instantaneous effective column momentum. The communication ratio is a validity diagnostic calculated from scalar rates.

Where: Component c → Global ODEs and DAEs → Global Equations 1.

Enter: Keep the equation group name ODE1. Set Dependent variable quantity to Dimensionless (1) and Source term quantity to Dimensionless (1). Delete the default placeholder equation row before entering your five rows.

Check: Both quantities are dimensionless. The factor tau in each equation converts a rate into a dimensionless residual.

State meanings before the equation entries: qq=x/Lbudget; vv=U/Us; dd=Edis/E0; ee=Eout/E0; ii=Iout/Iscale. These are the five solved scalars. The Variables node supplies algebraic expressions. The equation rows supply independent states.

Where: The Global Equations table from Step 13.

Do: Enter every row below, including both initial-value columns. COMSOL sets the residual f(u,ut,utt,t) to zero. Select a long row to edit its fields below. A_equations.tsv is a headed copy/paste reference. The parameter/variable Load from File buttons do not import it into this equation table.

Check: The only names are qq, vv, dd, ee, ii. Their initial values are all zero. The row for ii integrates momentum flux, rather than assigning mJet*U to emitted impulse.

Where: The five equation rows and the Variables node.

Do: Inspect qqt, vvt, ddt, eet, iit. They are COMSOL's first-time-derivative names: vvt is the derivative of vv. Do not type vv*t, which is multiplication. Initial value ut_0=0 is retained from the accepted setup. The first-order equations calculate the evolving derivatives.

Check: Zero initial speed does not mean zero initial acceleration. With the baseline pressure, acc starts positive. The source, volume and output expressions should now resolve through the five declared states. Global Equations documentation.

Where: Study 1 → Step 1: Time Dependent.

Enter: Keep Time unit s and replace Output times with:

range(0,1[ns],100[us])

Check: The requested list begins at zero and ends at 100 µs, with 1 ns output spacing. The stop conditions will terminate the first episode earlier. This list is numerical sampling, not the 10 ns optical pulse.

Where: Right-click Study 1 → Show Default Solver.

Do: Expand Solver Configurations → Solution 1 and click Time-Dependent Solver 1. If these nodes are already present, expand them directly. Keep the generated Dependent Variables node. It connects the ODE1 equation group to the solver.

Check: Time-Dependent Solver 1 is visible and selected in Settings. You have not added a second study or a second physics interface.

Where: Solution 1 → Time-Dependent Solver 1.

Enter: Use the following General, Absolute Tolerance and Time Stepping settings. If General inherits from the study, choose User defined in Defined by study step. The solver's time list must match Step 16.

Check: BDF, Strict, 1e-9 and initialization Off are visible. Keep automatically selected initial steps, BDF orders and variable scaling. These are first-order ODEs. Turning initialization Off preserves the prescribed zero velocities. Strict stepping reaches the listed times and can take extra internal steps when needed. Time solver documentation.

Where: Right-click Time-Dependent Solver 1 → Stop Condition.

Do: Add the four rows below. In every row, set Stop if to Negative (<0) and select Active. Under Output at Stop, keep Add solution = No, matching the accepted files. Add warning can remain enabled.

Check: Four active rows are present. Component expressions have the c. prefix because this solver node is outside the component namespace.

Why: The first row stops after the first outward speed returns through zero. In a sealed case it instead checks wall speed. The other rows enforce liquid inventory, a declared stretch screen and a Mach screen. The initial zero speed is not negative, so the baseline can start. The communication screen is checked after solving in Step 28. It is not an online stop row. Stop Condition documentation.

Where: Parameters, Variables, Global Equations, Time-Dependent study and its solver.

Check each item: 32 parameters; 33 variables; 5 equation rows. Both equation quantities Dimensionless. All initial states zero. Study and solver both use the 1 ns list; BDF Strict. Consistent initialization Off. Four active Negative stop rules. Initial Values of Variables Solved For must come from the physics initial values, not a previous nonzero solution.

Do: Save a checkpoint practice/A_02_ready_to_solve.mph. If an unknown-variable message names comp1 or c, correct the namespace. If it names qq or vv, inspect the equation Name column.

Where: Study 1 toolbar, or right-click Study 1 → Compute.

Do: Click Compute. Watch Progress and Log. Let the solve finish before opening a result table. A warning stating that a stop condition was fulfilled is expected when its description matches one of the declared rules.

Check: The stored episode ends around 33.885 µs, before the requested 100 µs. The baseline emits outward, reaches a speed maximum and returns toward zero. Read the first causal error if a solve fails. Do not continue to plot an old solution.

Where: Right-click Results → 1D Plot Group. Right-click the new group → Global.

Enter: Label the group A outlet speed. Choose the dataset for Study 1 / Solution 1. In Global's y-Axis Data table enter c.U, Unit m/s, Description Outward outlet speed. In x-Axis Data use Time as the axis source. Select us as the time unit if available. Otherwise keep seconds and read the axis accordingly. Click Plot.

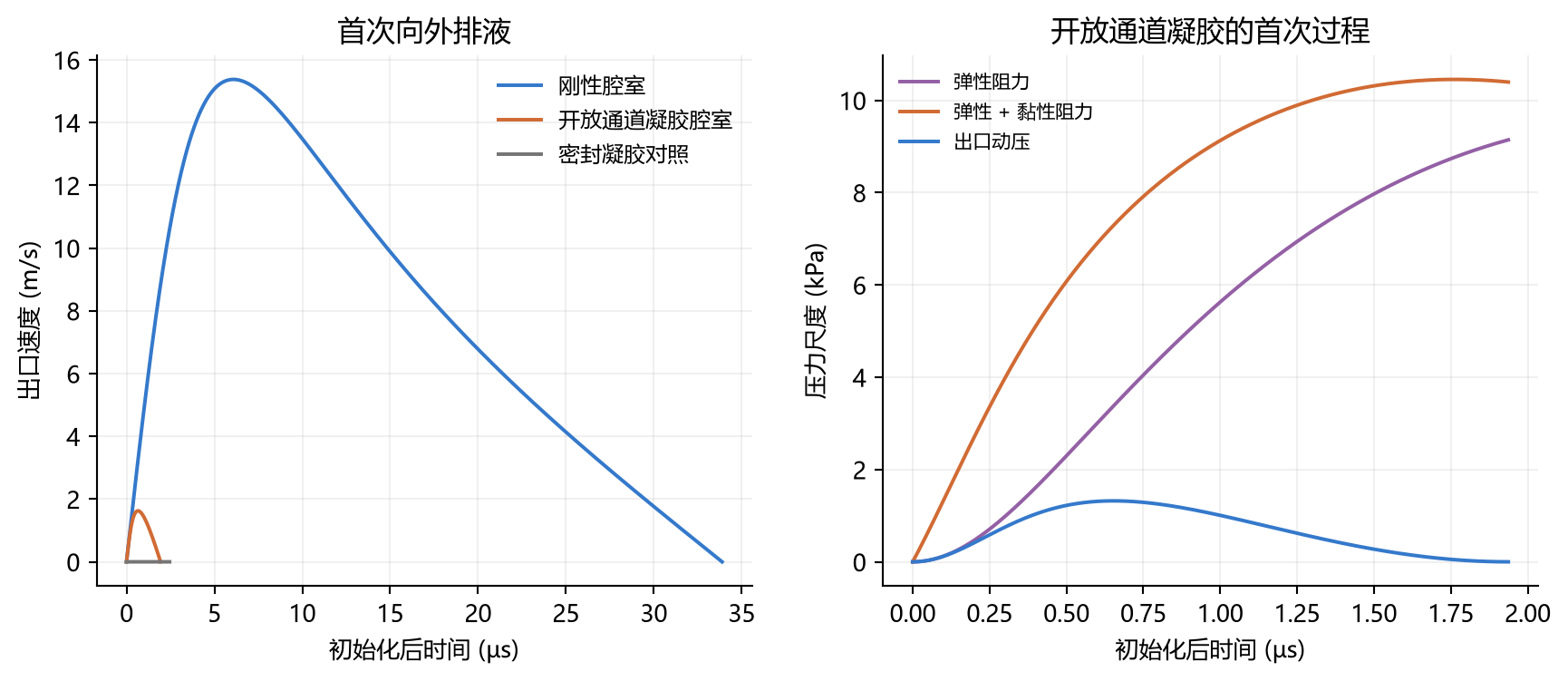

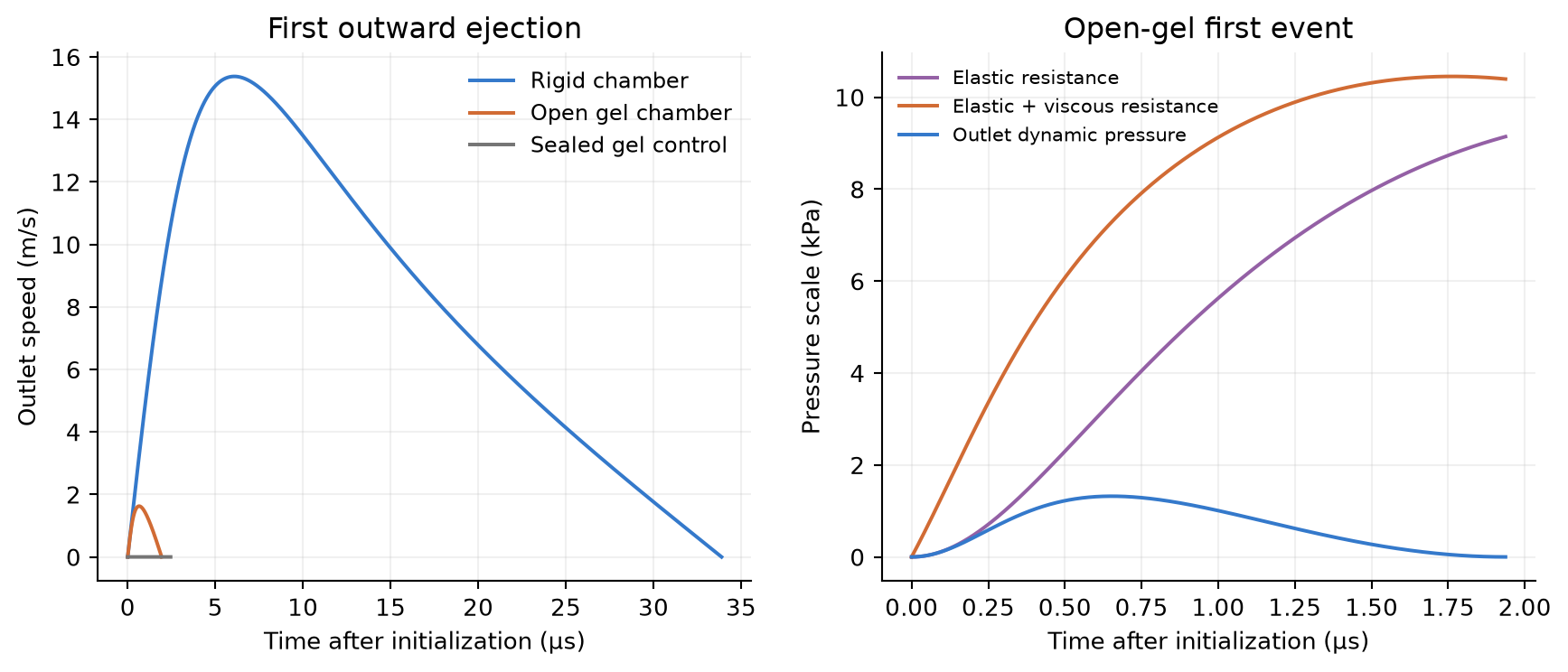

Check: Speed begins at zero, peaks near 15.3761 m/s, then decays toward zero. Do not use Surface or Volume plots for these scalar data.

Where: Add another 1D Plot Group → Global.

Enter: Label it A pressure definitions. Use the same dataset and time axis. Enter:

Check: Initial source overpressure is about 279.632 kPa. Maximum outlet dynamic pressure is about 118.212 kPa. Absolute chamber pressure would be c.pb, including ambient. Dynamic pressure is an outlet kinetic-energy scale and does not calculate a target impact peak.

Where: Add another 1D Plot Group → Global, label A energy accounting.

Enter: Plot the following dimensionless quantities against time, with Unit 1:

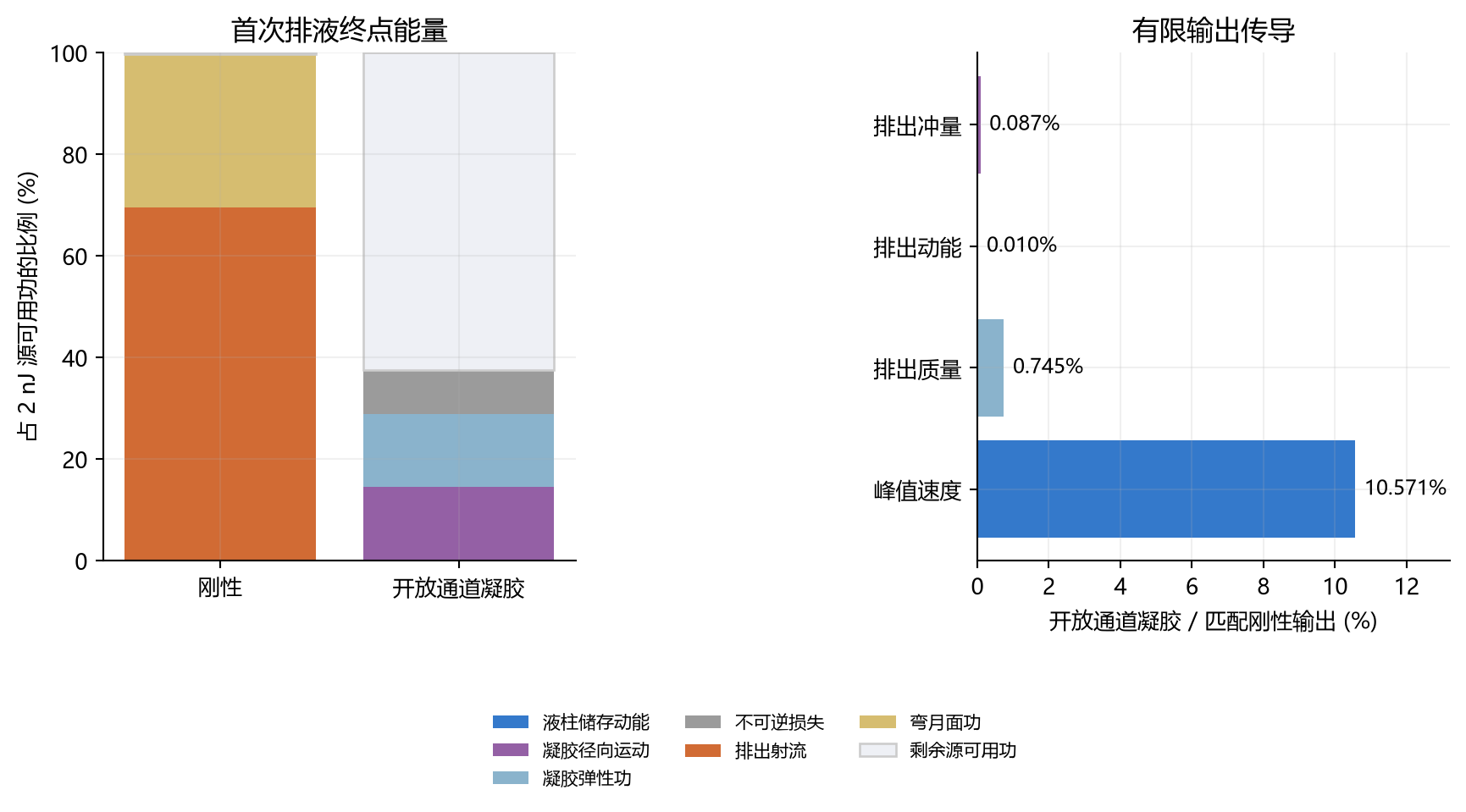

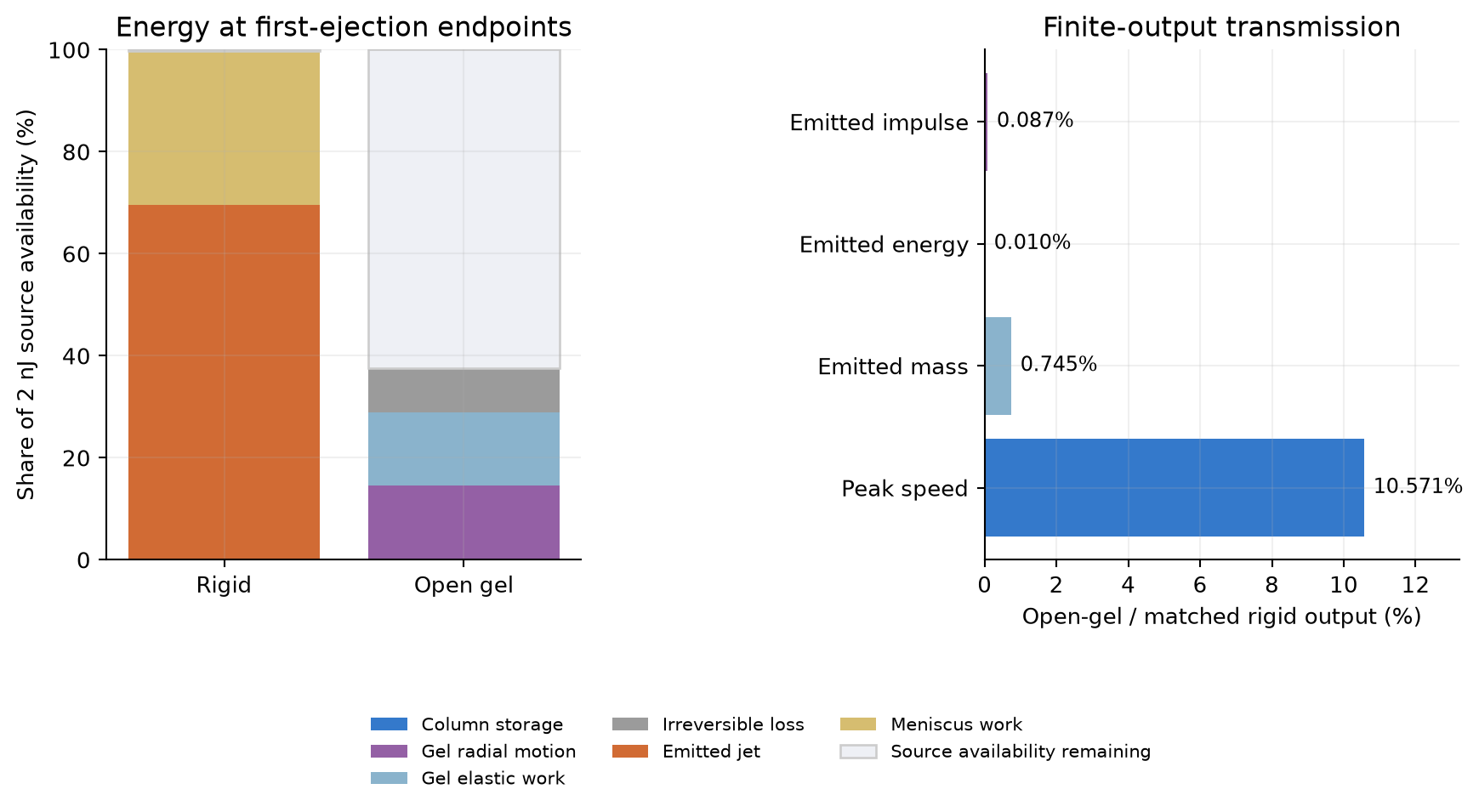

Check: Eout increases over the outward episode, while stored column energy rises and falls. Near the end, low Kjet can coexist with substantial emitted energy. The residual stays near zero. Remaining source availability explains energy not yet allocated to these four destinations.

Where: Right-click Results → Derived Values → Global Evaluation.

Enter: Label the node A complete first-ejection history. Select the Study 1 solution dataset and Time selection = All. Leave Data Series Operation → Transformation = None. Enter the complete expression table below and click Evaluate. global_evaluation.tsv is a headed copy/paste reference.

Check: You obtain multiple time rows covering the solved episode, rather than one maximum or an assumed 100 µs endpoint. The emitted-output columns are included separately from stored column energy/momentum.

Where: Add a separate Derived Values → Global Evaluation node.

Enter: Label it A temporal maxima. Dataset = Study 1 solution; Time selection = All; Data Series Operation → Transformation = Maximum. Enter the expressions below and Evaluate. If Data Series Operation is collapsed, expand it.

Check: These are maxima over time for each listed scalar, not spatial maxima. The time of maximum source pressure need not equal the time of maximum speed.

Where: Add another Global Evaluation, label A endpoint output.

Enter: Dataset = Study 1 solution; Time selection = Last; Transformation = None. Enter t, c.Eout, c.Iout, c.Mout, c.x, c.U, and c.energyResidual, using the units in the table below.

Check: Last means the last stored time in this stopped solution, about 33.885 µs. It does not mean the nominal 100 µs final time. Stop Condition checks discrete solver steps. The exact zero-crossing time differs slightly from the final stored row. Use this same endpoint convention for emitted-output comparisons.

Where: The plots, maxima and endpoint tables you just created.

Do: Check zero initial liquid/wall velocities, positive gas volume/absolute pressure, outward speed throughout the reported episode, normalized residual below 1e-6, communication below 0.1, both Mach diagnostics below 0.1, and stroke no greater than the finite liquid budget. Inspect the stop description. Then save practice/A_baseline_my_rebuild.mph.

Check: The baseline peak agrees with 15.37608 m/s and endpoint emitted energy with about 1.391345 nJ. These check implementation of the stated controls. They do not calibrate the PFC EOS or laser conversion.

Where: Global Definitions → Parameters 1.

Do: For the sampled source-work levels, use the absolute pressures below. They were obtained by inverting the finite adiabatic available-work relation at the same Rg0, kap and pInf. Edit p0. Leave the E0 expression in place. Keep all other inputs fixed for the source-work comparison.

Check: The Value column for E0 evaluates to the intended available work. If you change source radius, ambient pressure or exponent, recalculate this map using Step 2 of MODEL_SPEC.md or source_pressure in reference.py. This particular three-pressure table then no longer applies.

Where: Parameters, Study 1 Compute, and A temporal maxima.

Do: Perform each row of the following trial table: set p0 and a. Commit both cells. Verify E0. Recompute Study 1 from its initial values; Evaluate the maxima and endpoint nodes on the newly computed dataset. Record peak speed, both defined pressures, emitted energy/impulse, and the validity diagnostics. Save each trial under its own practice filename if you want to preserve that solution. Repeat this entire sequence for every row.

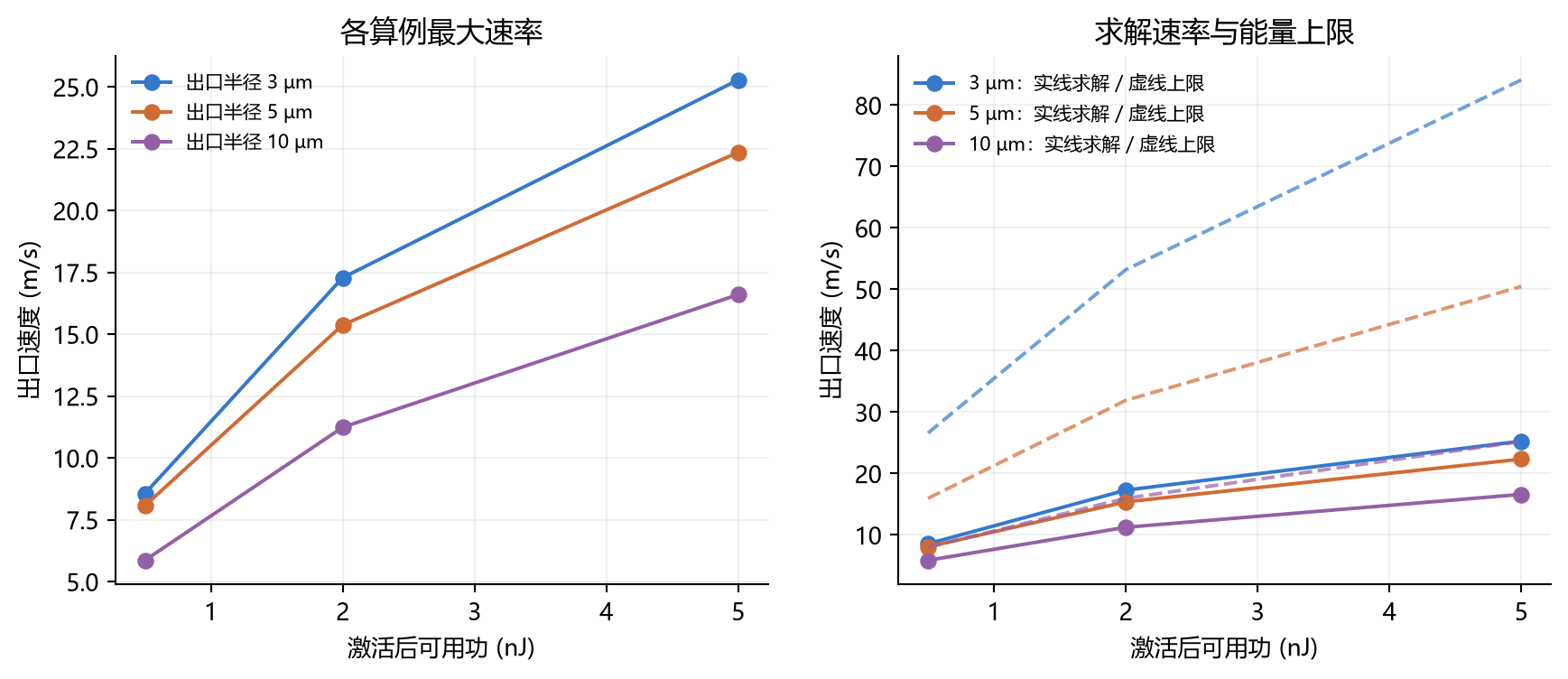

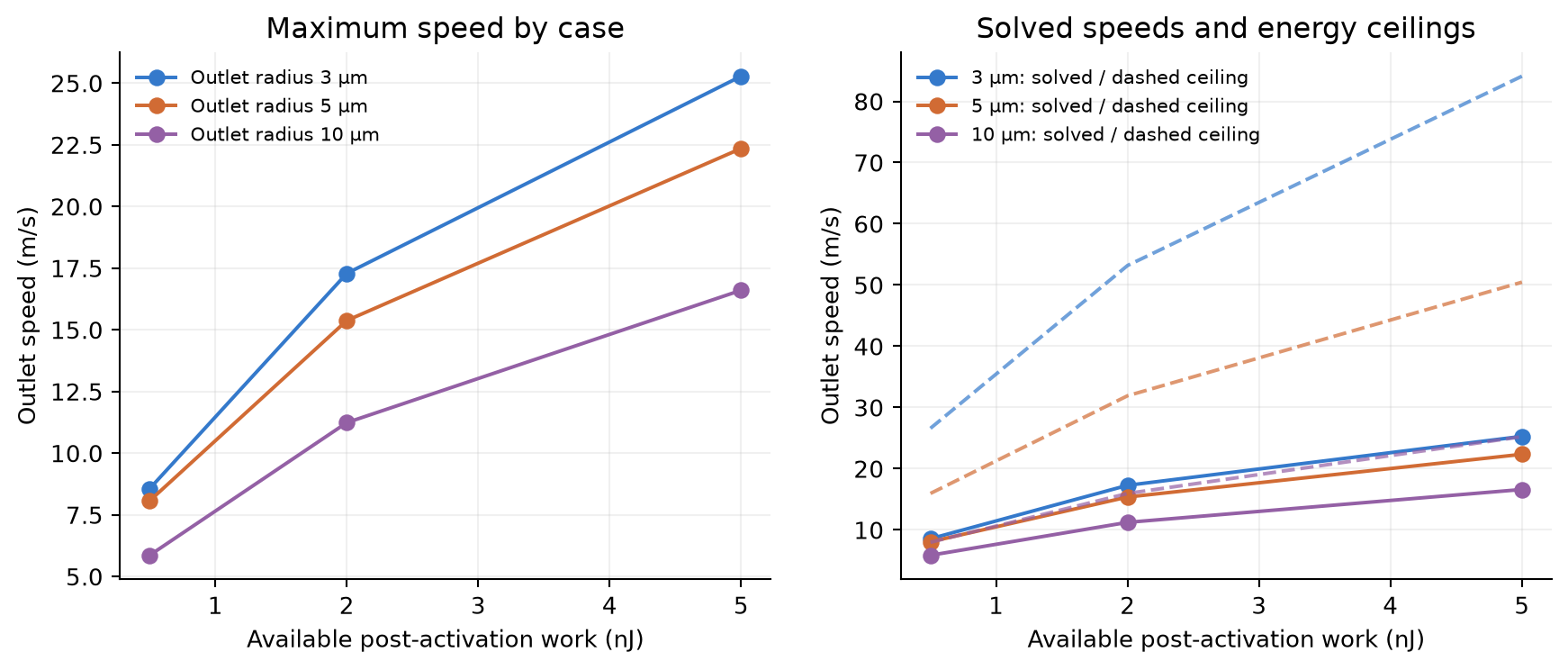

Check: The largest sampled speed is about 25.27982 m/s at 5 nJ and a 3 µm outlet. Its source overpressure is about 512.212 kPa and dynamic-pressure scale about 319.535 kPa. The maximum is conditional on the declared family. Raising available work or changing architecture changes the family.

Where: Parameter values Uceiling, qCeiling, and the nine-case results.

Do: Compare solved maximum speed with Uceiling, and solved dynamic pressure with qCeiling, case by case. These bounds allocate all available work to column motion and are consequently larger than the achieved peaks. Use the included conditional envelope figure for the accepted comparison.

Check: At the baseline the energy-only speed bound is about 31.9154 m/s, while solved speed is 15.3761 m/s. Record chamber pressure, outlet dynamic pressure and the energy-only bound in separate columns. The excluded activation transient and target impact have no pressure prediction in these models.

Where: File → Open, then File → Save As.

Do: Open your saved A_baseline_my_rebuild.mph from Step 28. Save a separate copy as practice/B_01_from_A.mph. Change the component Label to c: Model B practice. Keep its Name c.

Check: You are editing the Model B practice copy. p0=379631.6312499547[Pa], a=5[um] or its equivalent in metres, G=20[kPa], etaG=0.010[Pa*s], rhoG=1000[kg/m^3], Kloss=0, Rloss=0[Pa*s/m], outletOpen=1. These are the matched baseline inputs. B_parameters_import.txt contains the full baseline table if you are building B in a separate blank model.

Where: Component c → Definitions → Source, outlet and accounting.

Do: Replace the nine existing rows below. Keep the other 24 expressions from Model A. You may use B_variables_patch_import.txt to update these names, or edit their Expression cells manually. B_variables_import.txt contains all 33 B rows for a fresh Variables table.

Check: Gas volume now depends on both expelled liquid and expanding wall radius. pEl, Wgel, Kgel and gel loss are active. rr and ww become defined in the next card.

Where: The existing Global Equations 1 table.

Do: Replace the five-row table with the complete seven-row table below. Retain Dimensionless for both quantities. rr=R/Rc0 is wall-radius ratio and ww=Uw/Us is normalized wall speed. All other state meanings remain those in Step 13. Set rr's initial value to 1. Initial values of the other six states, and every ut_0 entry, are zero. B_equations.tsv is the headed copy/paste reference.

Check: Names are qq, vv, rr, ww, dd, ee, ii. There are seven rows. A zero initial rr would give a zero-radius singularity and is incorrect.

Where: Study 1 → Time Dependent, then Solution 1 → Time-Dependent Solver 1.

Do: Keep the 1 ns output list in both nodes. Match all fields from Step 18. Initial states must come from the updated physics table. The existing ODE1 equation group now contains seven states. Do not manually select the old final A solution as the new initial state.

Check: The solver has one active Global ODEs and DAEs interface. Consistent initialization remains Off. If you regenerate the default solver after editing the physics, re-enter Step 18 and recreate Step 19's four stopping rules before computing.

Where: The inherited Time-Dependent Solver 1 → Stop Condition.

Do: Compare all four rows with Step 19. Keep each Active and Negative. The first expression must still be if(outletOpen>0.5,c.U,c.Uw).

Check: Open B ends at the first outlet-speed return, while sealed B ends at the first wall-speed return. The 20% stretch rule is a declared screen, not a measured gel-fracture threshold. Stop warnings identify which episode was retained.

Where: Study 1 → Compute.

Do: Save practice/B_02_ready_to_solve.mph, then Compute with outletOpen=1. After completion, reselect the current Study 1 dataset in inherited plots and evaluation nodes as needed. Relabel those nodes with B so you can distinguish their results from the saved A practice file.

Check: Peak outlet speed is about 1.62538 m/s and the retained outward episode ends around 1.937 µs. These differ from A because wall expansion and gel loss provide additional destinations for source work.

Where: Add Results → 1D Plot Group → Global nodes.

Enter: In one group plot c.stretch with Unit 1, and in another group plot c.Uw with Unit m/s. In a pressure group plot c.pEl, c.pRes, c.pb-pInf and c.qJet, all in kPa. Use the current B dataset and Time x-axis.

Check: Initial stretch is 1 and initial wall speed is zero. pEl is elastic resistance; pRes adds viscous resistance. The chamber driving pressure also supplies wall inertia, so it is not interchangeable with either resistance curve. Maximum baseline elastic resistance is about 9.143 kPa.

Where: Add another 1D Plot Group → Global, label B hemisphere resistance.

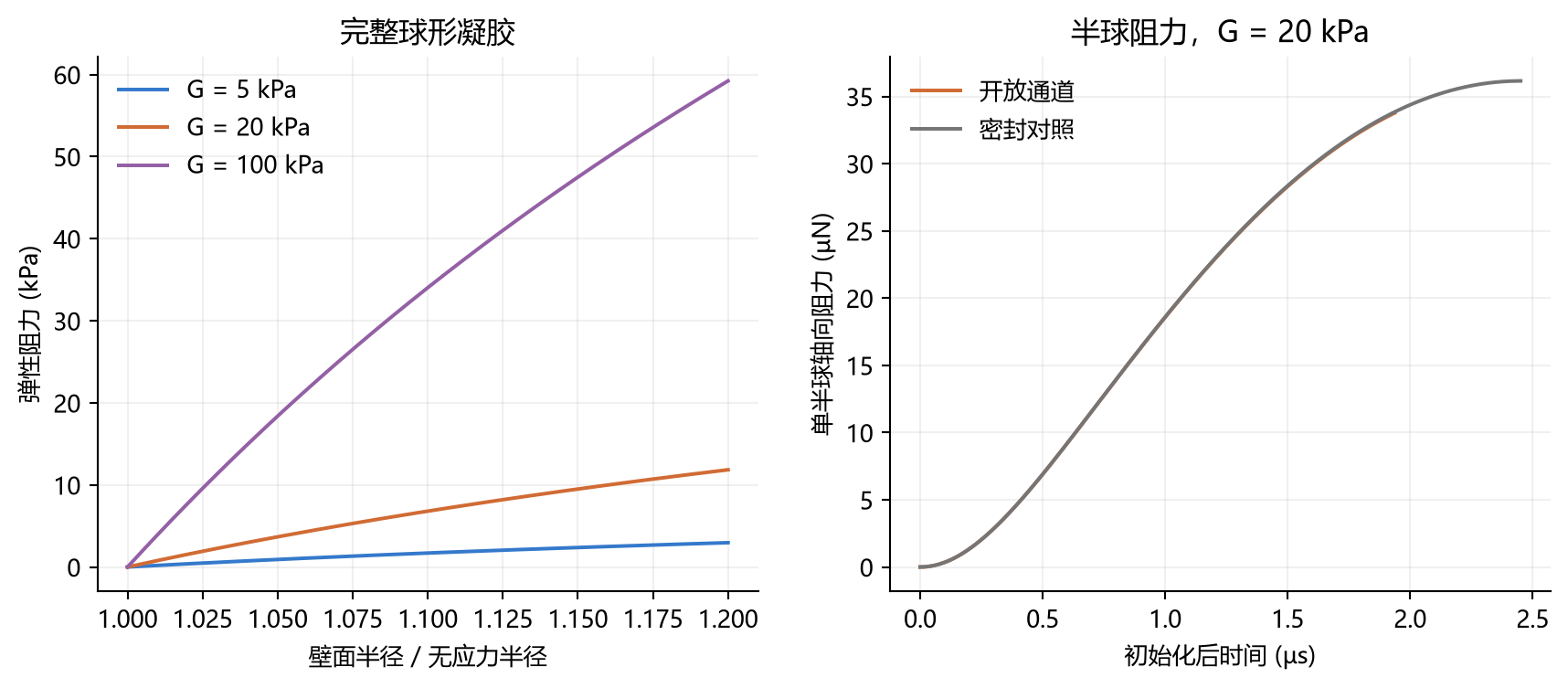

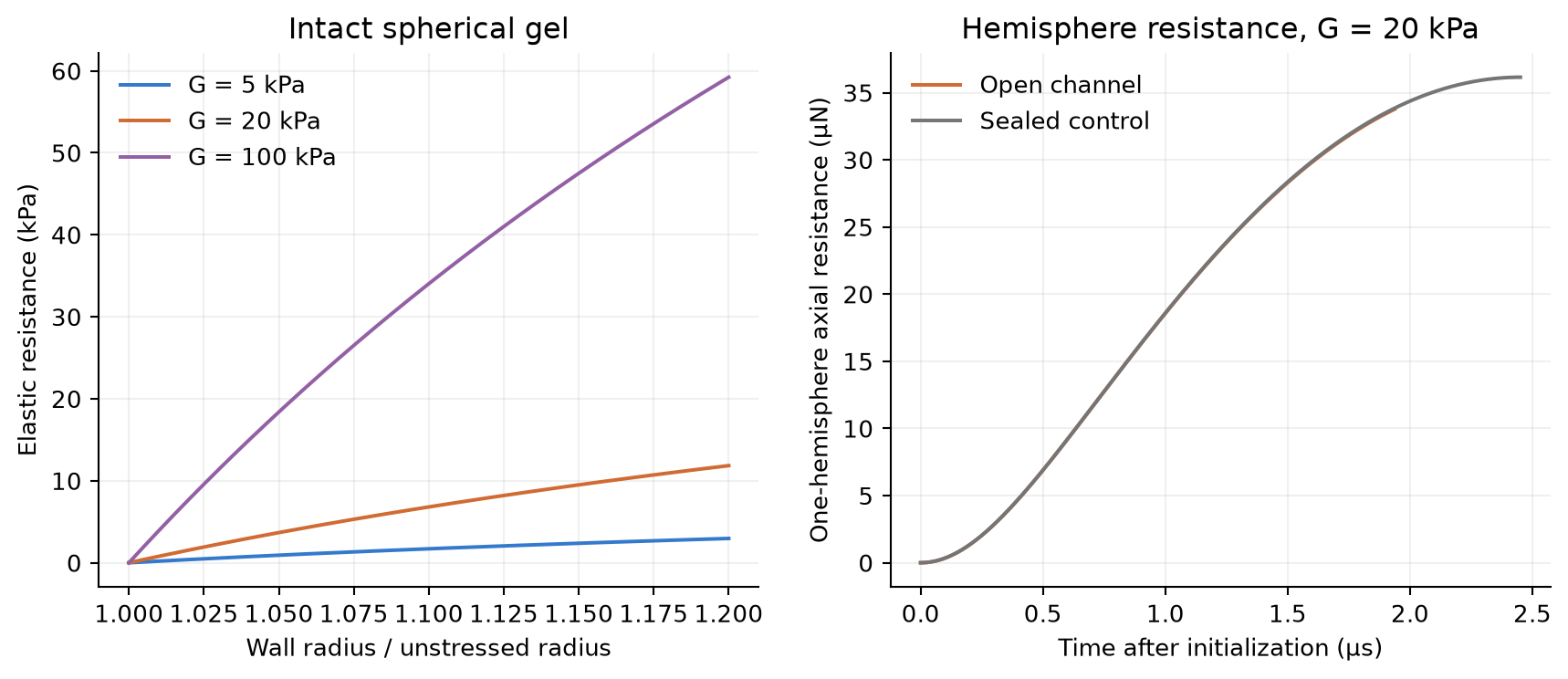

Enter: Plot c.Fconf with Unit uN. Its definition is the axial resultant of elastic wall traction on one hemisphere. Optionally add pi*c.R^2*c.pRes, also in uN, labeled Elastic plus viscous hemisphere resistance.

Check: Maximum elastic force is about 33.77 µN. This is a defined hemisphere resultant. Spherically symmetric wall traction has zero net vector force on the complete sphere. This number is not a measured target force or a resolved planar-layer force.

Where: Duplicate or create a Global Evaluation node. Label B temporal maxima.

Enter: Current B dataset; Time selection All; Transformation Maximum. Evaluate c.U in m/s, c.qJet and c.pEl in kPa, c.Fconf in uN, c.stretch, c.communication, both Mach diagnostics and abs(c.energyResidual) in 1.

Check: Each maximum belongs to its own time history. Do not calculate confinement force by multiplying the maximum pressure by the initial area if the wall radius changed. Evaluate the full Fconf expression. The validity checks remain part of accepting the output.

Where: Global Evaluation, label B endpoint output.

Enter: Current B dataset; Time selection Last; Transformation None. Use the same endpoint expression list as Step 27.

Check: The very small emitted energy reflects the complete, short B discharge episode. Kjet is not a substitute for that emitted energy; Ijet is not a substitute for emitted impulse. A speed peak alone cannot supply the integrated output.

Where: Two additional Global Evaluation nodes in your B model.

Do: First retain the matching A peak and endpoint values from Steps 26–27. For this baseline, the expressions below use those accepted A values as explicit denominators. If you change source state or geometry, replace every denominator with the corresponding value from your newly matched A control.

Check: Use All times + Maximum for peak-speed/dynamic-pressure ratios, and Last + None for emitted-energy/impulse ratios. Multiply a dimensionless ratio by 100 to report percent. Expected baseline results are about 10.5709% speed, 1.1174% dynamic pressure, 0.00980% emitted energy, and 0.08731% emitted impulse. Only the dynamic-pressure ratio equals speed ratio squared at matched density. The episode-integrated energy and impulse ratios depend on the full discharge histories.

Where: Parameters, then Study 1 Compute.

Do: Save the open baseline as practice/B_open_baseline_my_rebuild.mph. Save a separate copy practice/B_sealed_control_my_rebuild.mph. Change only outletOpen to 0, then recompute from the physics initial values. Leave the first stop expression's conditional switch intact.

Check: U, x, Mout, Eout and Iout remain zero throughout. The wall can move and the gas pressure can change. The sealed control's maximum elastic pressure is about 9.6259 kPa, maximum stretch about 1.15252, and endpoint about 2.452 µs. A sealed wall response is not an external liquid jet.

Where: Reopen B_open_baseline_my_rebuild.mph. Edit Parameters and Compute for each trial.

Do: Use the seven-case table below. For each row, restore the other baseline values, commit the changed cells, recompute from the same initial state and Evaluate the same maxima/endpoint/screen nodes. Save outputs under distinct practice names. You may use the accepted native case register to compare the complete outputs.

Check: Every trial remains a first-event result. A different modulus or viscosity can change both the peak and discharge duration. Inspect energy allocation and stopping reason before describing its effect. Do not assume that one stiffness trend proves a universal transmission law.

Where: Time Dependent study and Time-Dependent Solver 1.

Do: On a baseline copy, set both lists to range(0,2[ns],100[us]); Compute and record peak U, last Eout and last Iout. Change both lists back to range(0,1[ns],100[us]); Compute and record them again. Keep tolerances, inputs and stopping rules fixed. Compare relative changes using the 1 ns value as denominator.

Check: Accepted peak-speed changes are about 1.4e-8 relative for A and 9.5e-7 for open B. A baseline rebuild should show peak change below 1e-4. Endpoint quantities can vary with the discrete stop time. Inspect those changes as well. Retain the final 1 ns baseline. Changing only a plot's interpolation is not a solver-resolution test.

Where: Global Evaluation of All times with Maximum or Minimum, and the endpoint table.

Do: Check the following conditions individually. If a physical screen fails, record the failed regime rather than reporting that output as an accepted prediction.

Check: The supplied 17-case NUMERICAL_AUDIT.json has largest normalized first-law residual about 1.26e-7 and largest normalized native/reference waveform discrepancy about 1.15e-4. These are implementation checks. Material/phase calibration is separate.

Where: The Results table produced by each Global Evaluation.

Do: Evaluate the full-history node with All times and Transformation None. In the resulting table's toolbar use Save/Export to save a CSV under practice/, for example A_baseline_GUI_history.csv or B_open_GUI_history.csv. Export maxima and endpoint tables separately so their meanings remain distinct. Include units in the table descriptions or retain COMSOL's unit-bearing header.

Check: The history CSV has many time rows and contains emitted energy, impulse and mass. A maxima CSV is not a time history. Confirm that the endpoint CSV reports the actual stopped time. Native and independent comparison CSVs are already included under data/.

Where: File → Save As.

Do: Retain A baseline, B open baseline and B sealed control as separately named practice MPH files. Store each solved case with its matching input values and tables. Return to the open baseline after a sensitivity trial if you want that to be the main B practice file.

Check: Reopen each practice file and verify the title, input values and stored plotted data. Both saved baselines use 1 ns output. Your own practice files are in practice/. The delivery ZIP excludes that folder.

Where: File → Open, selecting either native file in models/.

Do: Inspect Parameters 1, the component's Variables node, Global Equations 1, Time-Dependent Solver 1, its Stop Condition, and the saved result plots/table. The interface labels in the delivered files describe the retained motion/accounting states. They may differ from the wizard's default caption. Use Global Equations 1 to identify the interface.

Check: A has five state rows and B seven. Both have 32 parameters, 33 variables, a single Global Equations interface and stored solutions. The accepted baseline files were reloaded in a fresh COMSOL process and from an extracted package. Numerical and portability evidence are linked in the report.

Where: Windows PowerShell in a separate working copy of this entire self-contained folder.

Do: With COMSOL 6.4 installed, run:

.\Run-Rebuild.ps1
.\Run-Verify.ps1
.\Run-CheckGuide.ps1
python -m pip install -r requirements.txt
python scripts/reference.py
python scripts/verify_results.py
python scripts/build_guide.py

Run-Rebuild.ps1 constructs the 17-case family and writes its native files and histories. Run-Verify.ps1 performs fresh-process and 2 ns / 1 ns checks and saves the refined baselines. The Python reference independently integrates the dimensional equations. Rebuild in a working copy because these commands replace its generated models/data. Use -ComsolBin on the PowerShell runners if COMSOL is installed elsewhere.

Check: Native batch logs must show completed runs and no internal Java error. Checking shell exit code alone is insufficient. Solver error details are under build/. This route reproduces the same equations as the GUI tables.

Where: The first causal Messages/Log error or unexpected output, and the node named there.

Do: Use the specific correction below before changing unrelated settings.

Check: Recompute only after correcting the implicated input or node. If input changes, rerun conservation and validity checks. A previously accepted table may no longer apply.

Where: Your experiment record and the Parameters table.

Do: Supply an evidence-based post-activation gas/phase volume and pressure-volume path or supported available-work estimate. Actual connected liquid volume and outlet inertance. Carrier properties. Gel modulus/viscosity at the relevant rate. And whether the channel already exists. Measure cavity volume, wall motion and emitted speed/mass on the same shot where possible. Use those data to update the controls, then repeat the complete acceptance sequence.

Check: A 5 nJ available-work input is not automatically a 5 nJ optical pulse. The spherical gel control is not an exact planar hydrogel-layer model. No external jet is predicted through unbroken sealed gel. Keep those architecture and calibration statements with every reported maximum or transmission ratio.

Where: Your saved practice files and output tables.

Check that you can independently reproduce: the 15.3761 m/s A baseline. The 25.2798 m/s largest sampled family case. The 1.62538 m/s open-gel baseline. Its 9.143 kPa elastic resistance and 33.77 µN hemisphere force. Matched emitted-energy/impulse ratios. And zero emitted output in the sealed control. Verify the stopping rules and numerical/physical screens, rather than checking peak values alone.

Completion record: Note the software version, input case, source-state assumption, actual stored endpoint, peak definitions, emitted-output definitions, maximum conservation residual, communication/Mach/stretch checks and refinement comparison. The project log and results report provide the accepted record for the supplied controls.
